產品應用
- Electronic Warfare
- Multi channel digital receivers
- Satellite communication
- Edge
- Artificial Intelligence
強大的運算單元

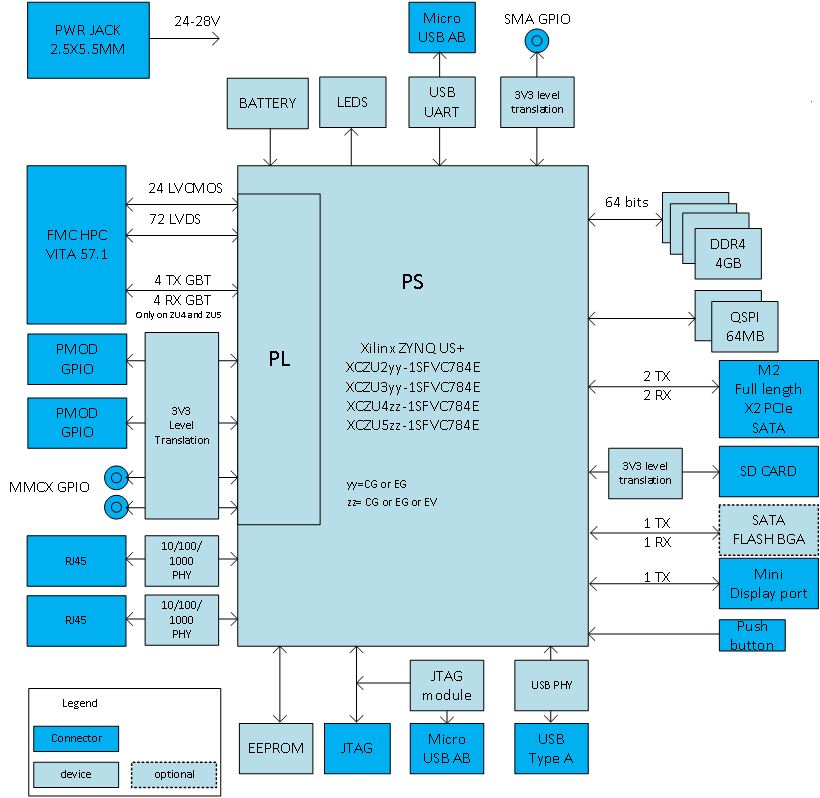

Using this device makes this platform a powerful application processing unit based on a Quad-core ARM Cortex-A53 combined with a real time processing unit built around the Dual-core ARM Cortex-R5. Furthermore, there is the option for an ARM Mali-400 MP2 graphics processing unit and an on-chip H.264/H.265 CODEC1. All this processing power is combined with a Programmable logic section of up to 256K logic cells, 1248 DSP slices and 25Mbits memory.
超大容量記憶體
The processing system is connected to a 2400 Mb/s DDR4 memory bank that is 64 bits wide and offers a total memory density of 4GB. This memory is complemented with several FLASH storage options based on onboard QSPI FLASH, SD card storage, upto 64GB onboard FLASH drive and an M.2 expansion slot (2280).
系統IO
External interfaces to the Processing system comprise of a dual 1G Ethernet port, one mini DisplayPort, a type A USB2.0 port, a dual UART over USB port and a single SMA for GPIO.
適應性邏輯
The Programmable logic connects to an FMC (VITA 57.1) site that allows flexible IO expansion through a wide range of Commercial off the shelf FMC products. These can add for example Analog IO, Digital IO, RF IO or Video IO functionality to the LXF90K0 platform. In addition, the programmable logic has two GPIOs that connect to an MMCX connector and two six pin PMOD interfaces. The PMOD interfaces can be used to connect low frequency, low I/O pin count peripheral modules to the processor system or the programmable logic.
產品規格
Product Information
Front panel IO type：FMC-IO + 2 x LED + SMA trigger
Ethernet type：Dual 1000BASE-T on RJ45 connector
Video interfacemini：Display port
Debug interfaces：Uart over USB on micro USB connector plus standard Xilinx JTAG header
Onboard memory：4GB 2400-DDR4 + 64 MB QSPI FLASH + 64 GB SSD (optional)
USB ports：Single USB 2.0 port type A
Expansion conenctors：FPGA mezzanine - High pin count + 2 x PMOD + M.2 dual lane PCIe
Power connection：Rugged power jack (2.5 x 5.5 mm)
FPGA type：Zyn Ultrascale+ - XCZU3 (154K logic , 7.6Mb RAM, 360 DSP) - CG (Dual core)
Form Factor：Standalone (100 x 160 mm)
Legislation and Environmental
Supported operating temperature：Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization：standard Commercial Air-cooled
ROHS Compliant：Yes - RoHS Phthalates Compliant
SVHC： Product contains no SVHC (15-May-2020)
Country of origin：the Netherlands ( Europe)
Tariff Number (HS code)：84733020- Electronic assemblies of automatic data-processing machines
ECCN：EAR99
 |
產品文件：產品規格表 |
