LXD30K0 │ 12 位元低延遲寬頻 ADC/ DAC FMC │ 電子戰 雷達應用 DRFM 醫療 電信系統

產品應用

  • Electronic Warfare systems
  • Radar waveform generators and receivers
  • Advanced digital radio frequency memory (DRFM) systems
  • Medical systems
  • Telecommunicaton systems

12位元低延遲寬頻ADC/DAC FMC

With the LXD30K0 Logic-X provides a unique analog interface product that is based on the 12-bits low latency wide bandwidth ADC (EV12AS350A) and DAC  EV12DS460) from Teledyne E2V. Multi card synchronizaton is supported thanks to a flexible clock tree and external synchronization trigger input.

類比輸入

With an analog input stage that has a very wide input bandwidth from 0.5MHz up-to 4.8GHz and the low latency 5.4Gsps ADC from E2V (EV12AS350A) the LXD30K0 delivers unmatched performance with regards to SFDR, close in phase noise and latency (7.2 ns). Sampling at 5.4 Gsps offers an instantaneous bandwidth of 2.7GHz.

類比輸出

Surpassing the analog input, the analog output offers an even lower latency (1.2 ns) using the EV12DS460 DAC device from E2V. The output bandwidth ranges from 0.5MHz to 6GHz and the instantaneous output bandwidth is 1.35GHz.

12位元

Both the ADC and DAC offer 12-bits resolution further contributng to achieve best in class signal to noise ratios.

超低延遲

It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectvity to the host carrier. This can be less than 18 ns, depending on the carrier that is used.

時脈功能

The onboard low noise clock generator ensures easy integraton into small single channel systems as well as standalone operaton. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock.


產品規格

Number of analog input channels:1
Number of analog input channels:1
Front panel IO connector type:SSMC/ MMCX
Front panel IO type:ADC/ DAC
Form Factor:FMC - High pin count (HPC)

Analog input specification

Input coupling:AC coupled
Input maximum sample rate:5.4 Gsps
Input number of bits:12 bits resolution
Impedance:50 Ω
Input bandwidth AC coupled:0.5 MHz - 4.8 GHz
Input AC full scale power:+8.5 dBm

Analog output specification

Output coupling:AC coupled
Output maximum sample rate:2.7 Gsps (5.4 GHz update rate)
Output number of bits:12 bits resolution
Impedance:50 Ω
Output impedance AC coupled:0.5 MHz - 6 MHz
Output AC full scale power:-5 dBm (NRZ mode)

Legislation and Environmental

Supported operating temperature (2選1):Commercial (0°C ~ 70°C) / Industrial (-40°C ~ 85°C)
Ruggedization:standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant:Yes - RoHS Phthalates Compliant
SVHC:Product contains no SVHC
Country of origin:the Netherlands (Europe) (荷蘭製造生產)
ECCN :3A002.h.1.c

Conformal Coating (2選1):No coating / Mil-I-46058-C Confomal Coating

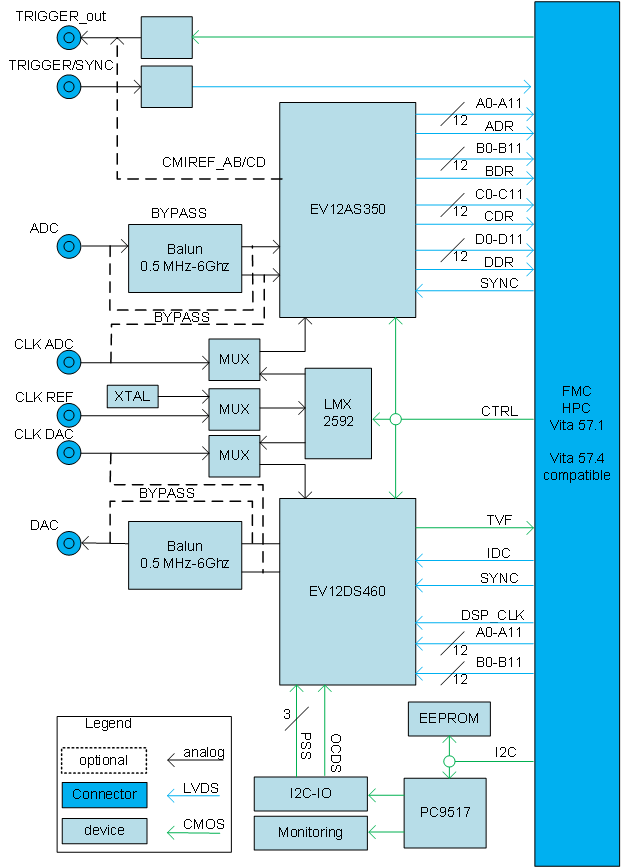

LXD30K0 block diagram


011 yes 128   產品文件:產品規格表
