LXD11K4 │16 位元低延遲寬頻 ADC │ MIMO 波束成形 雷達 電信系統 航太應用


  • MIMO Applications
  • Radar waveform receivers
  • Digital Beam Forming
  • Medical systems
  • Telecommunicaton systems
  • Experimental Physics
  • Analog playback systems
  • Aerospace and test instrumentation
  • Software defined radio (SDR)

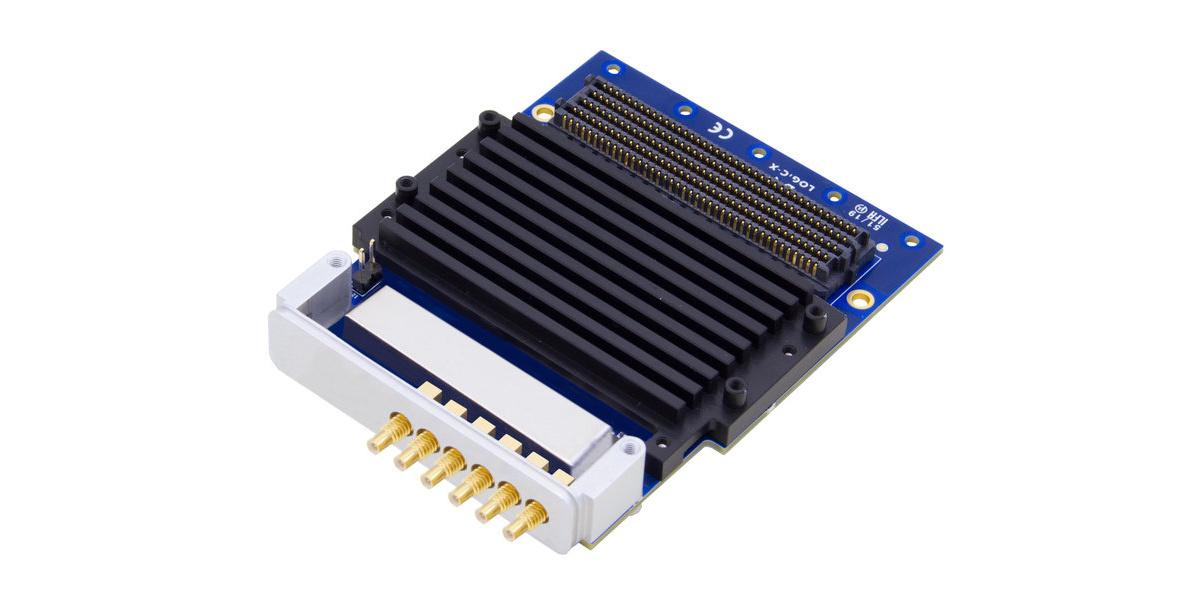

4 通道 16 位元 ADC FMC 模組

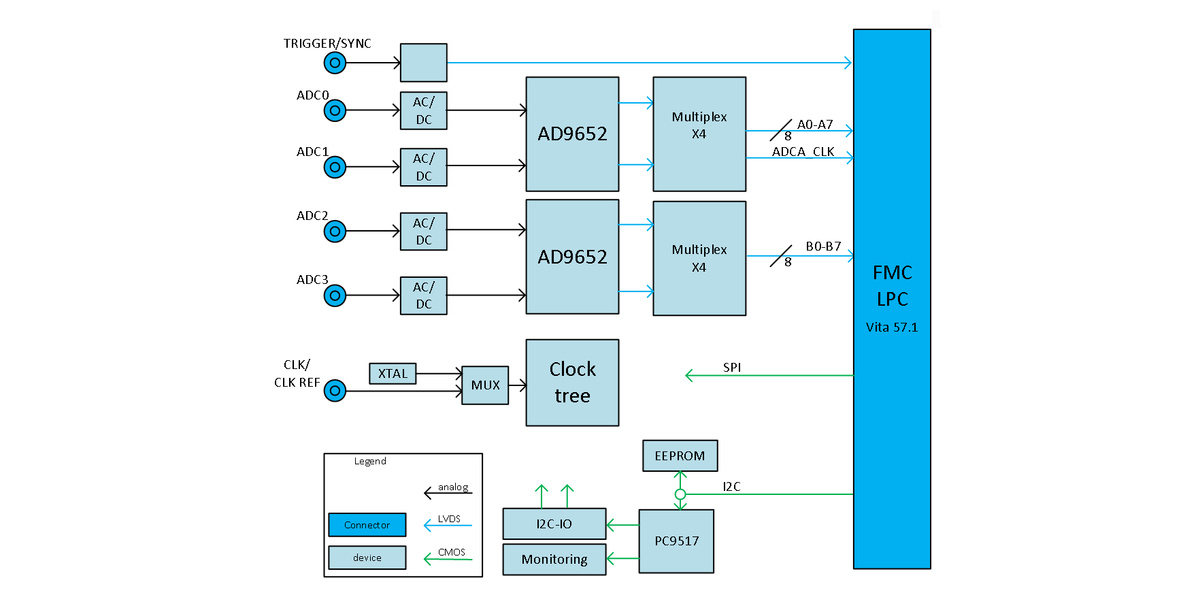

The LXD11K4 provides four 16-bit A/D channels with up to 310 Msps data rate. All the data interfaces are based on LVCMOS and LVDS signalling. The design is based on the Analog devices AD9652 analog to digital converters.


Depending on the application requirements it is possible to order the LXD11K4 with either a DC coupled or an AC coupled analog front end. The DC coupled interface is meant for signal acquisitions in the first Nyquist zone while the AC coupled inputs also offers the option for signal acquisition in the second Nyquist zone.


The ADCs offer 16-bits resolution further contributing to achieve best in class signal to noise ratios.

LVDS 訊號功能

The ADC devices make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD11K4 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Furthermore the low pin count implementation make sure the card can be used on all Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.


The onboard low noise clock generator ensures easy integration into small single board systems as well as standalone operation. For larger systems it is possible to easily synchronize multiple boards by providing an external reference clock. This is a special feature offered by the onboard clock PLL.


Number of analog input channels:4
Front panel IO connector type:SSMC/ MMCX
Front panel IO type:ADC
Form Factor:FMC - Low pin count (LPC)

Analog input specification

Input coupling:AC/ DC coupling
Input maximum sample rate:310 Msps
Input number of bits:16 bits resolution
Impedance:50 Ω
Input bandwidth AC coupled:10 MHz - 400 MHz
Input bandwidth DC coupled:DC - 200 MHz
Input AC full scale power:+ 6 dBm
Input DC full scale power:+ 12 dBm

Legislation and Environmental

Supported operating temperature (2選1):Commercial (0°C ~ 70°C) / Industrial (-40°C ~ 85°C)
Ruggedization:standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant:Yes - RoHS Phthalates Compliant
SVHC:Product contains no SVHC
Country of origin:the Netherlands (Europe) (荷蘭製造生產)
ECCN :3A002.h.1.e

Conformal Coating (2選1):No coating / Mil-I-46058-C Confomal Coating

011 yes 128   產品文件:產品規格表
