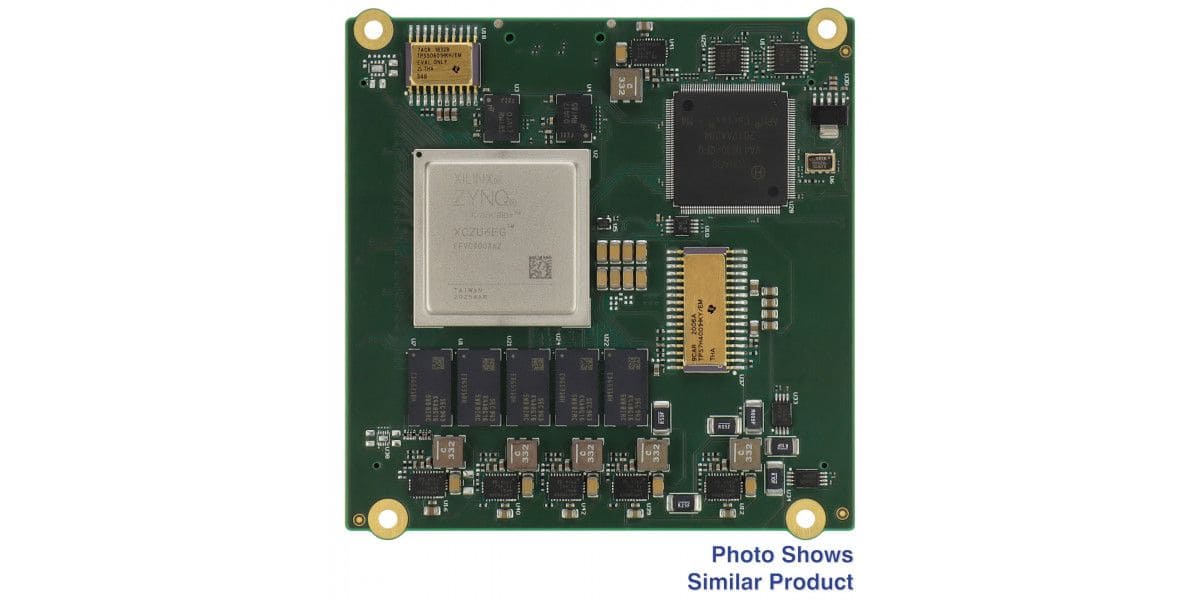

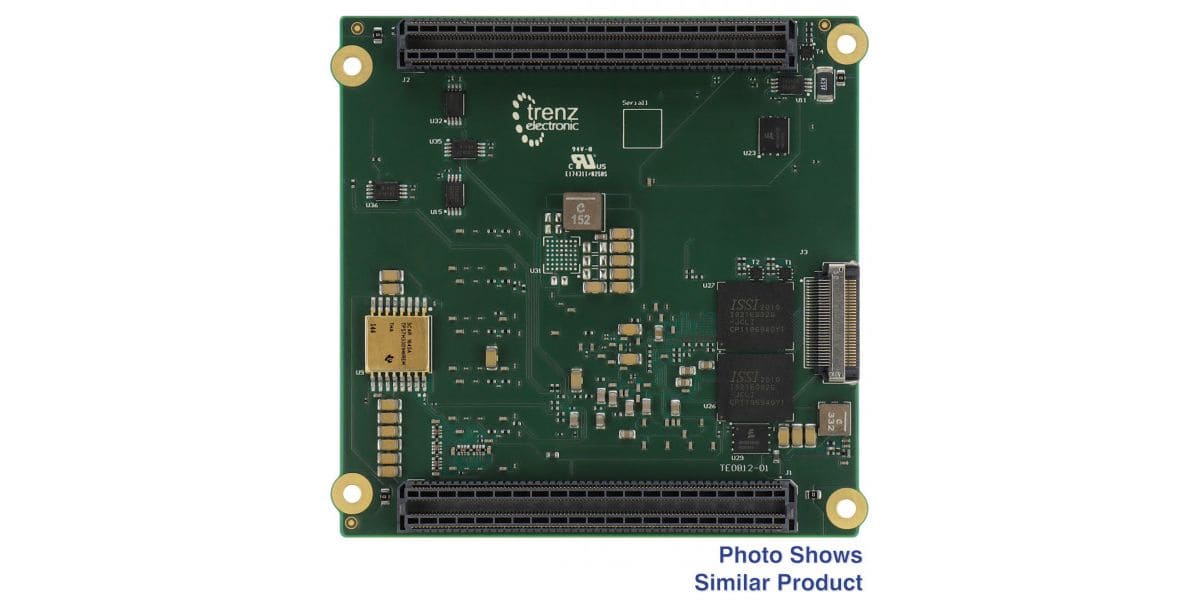

TE0812 (Xilinx UltraScale+) - Evaluationboard｜with Xilinx Zynq UltraScale+ ZU6EG-1I, 4 GB DDR4 ECC, 9 x 9 cm

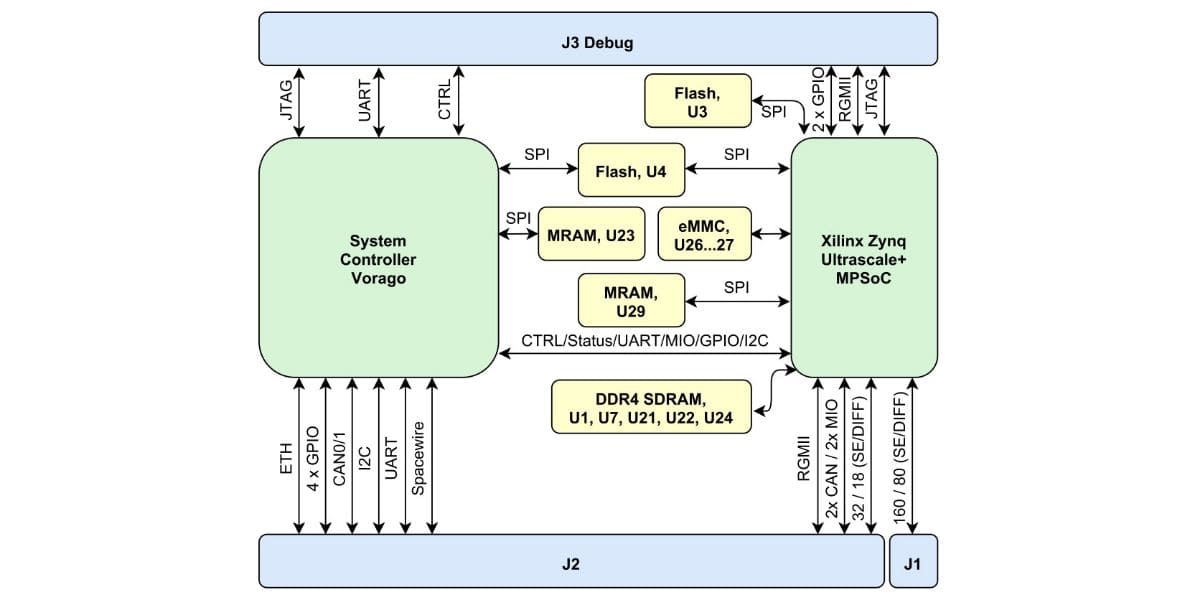

The Trenz Electronic TE0812-02-EM2 is a powerful evaluationboard integrating a Xilinx Zynq UltraScale+ MPSoC with 4 GByte DDR4 SDRAM ECC, dual 64 MByte serial Flash memory for configuration and operation, dual 4 Mbit MRAM, 2 x 32 GByte e.MMC and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

Key Features

• SoC/FPGA
  • Package: FFVC900
  • Device: ZU6
  • Engine: EG
  • Speedgrade: -1
  • Temperature range: Industrial
• RAM/Storage
  • 4 GByte DDR4 SDRAM with ECC
  • 2 x 32 GByte e.MMC
  • 2 x 64 MByte serial Flash
  • 2 x 4 Mbit MRAM
• On Board
  • Vorago VA41630-PQ176F0EBA
  • 2 x B2B APM6-100-06.5-L-04-2
  • LSHM-130-01-F-DH-A-S-K-TR Debug connector
• Interface to FPGA
  • via B2B Connector
    • 12 x GTH
    • 4 x GTR
    • 104 x HP PL I/Os (+1.8V)
    • 17 x HP PL AD I/Os (+1.8V)
    • 6 x HD PL I/Os (+3.3V)
    • MIOs for 2 x CAN
    • MIOs for ETH
  • via debug Connector
    • 2 x HD PL I/Os (+3.3V)
    • MIOs for ETH
    • MIOs for UART
• Interface to Vorago
  • via B2B Connector
    • SpaceWire
    • Ethernet
    • 4 x GPIO
    • 2 x Analog-Output
    • PPSIn/PPSOut
    • UART
    • 2 x CAN
    • I2C
  • via debug Connector
    • Reset
    • UART
    • JTAG
• Power
  • 12V power supply needed via B2B connector
• Dimension
  • 90 mm x 90 mm

Scope of Delivery

• 1 x TE0812-02-EM2 Trenz Electronic evaluationboard with Xilinx Zynq UltraScale+ ZU6EG

	產品編號：TE0812-02-EM2
