TEB0707|Carrier Board

TEB0707 Carrier Board|Trenz Electronic 4 x 5 Module Carrier for CRUVI Extension Boards

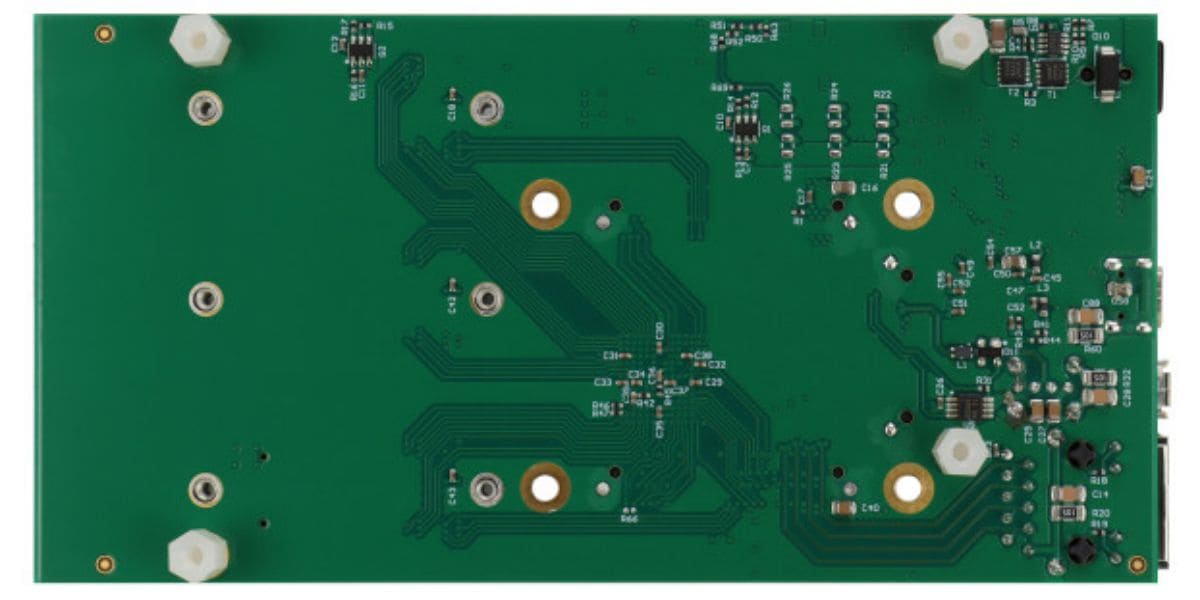

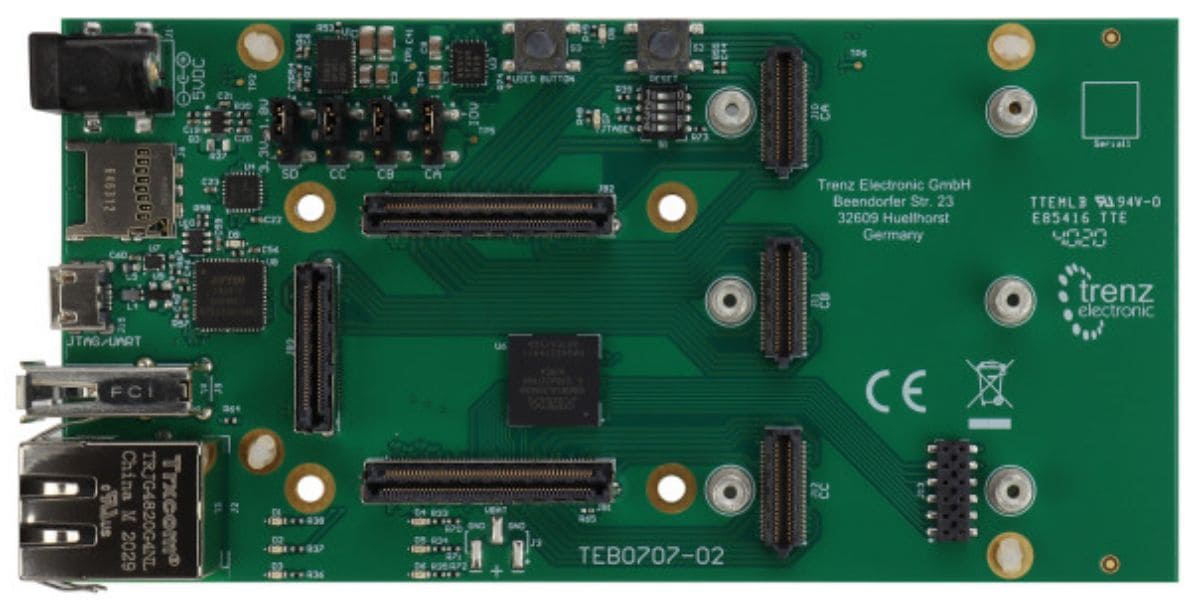

The Trenz Electronic TEB0707 is a carrier board for 4 x 5 Trenz Electronic modules. It provides three high speed and one low speed CRUVI extension connectors.

The TEB0707 is integrated with an Intel MAX 10 FPGA as system controller and is equipped with a Micro USB2.0 socket with FTDI to JTAG/UART solution, RJ45 LAN socket, USB A socket, microSD card socket, user LEDs, push buttons and DIP switches for controlling the SoM.

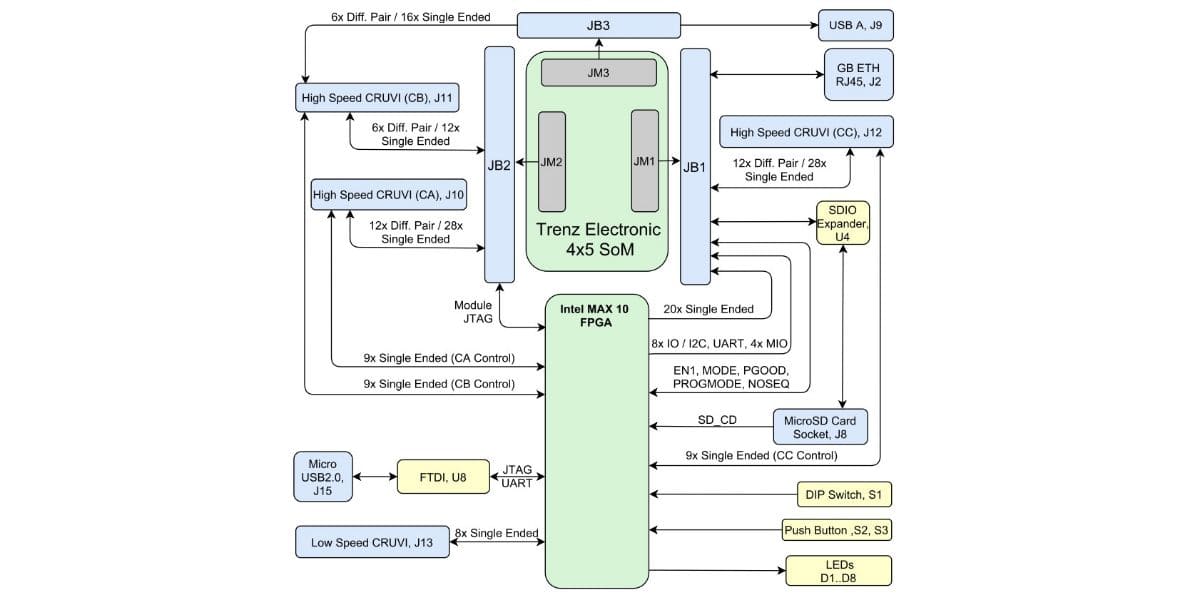

 2022 10 25 151101



Key Features

Modules

  • 4 x 5 Trenz Electronic modules

RAM/Storage

  • EEPROM (FTDI configuration)

On Board

  • Intel MAX 10 FPGA
  • FTDI FT2232
  • 6 x user LEDs (3 x green, 3 x red)
  • 2 x status LEDs
  • DIP switch
  • Push buttons

Interface

  • Gigabit RJ45 LAN socket
  • MicroSD card socket
  • Micro USB2.0 socket
  • USB A socket
  • 3 x High Speed CRUVI B2B connectors
  • 1 x Low Speed CRUVI B2B connector
  • 4 x Jumpers

Power: 5V input power supply

Dimension: 135 x 68 mm



Scope of Delivery

  • 1 x TEB0707-02 carrier board for Trenz Electronic 4 x 5 cm modules



規格:

Modules

Connectors

RAM/

Storage

On Board

Interface

Power

4 x 5 Trenz Electronic Modules

3 x High Speed CRUVI 1 x Low Speed CRUVI

EEPROM (FTDI

conguration)

Intel Max 10 FPGA, FTDI FT2223, 6 x user LEDs (3 x green, 3 x red), 2 x status LEDs, DIP switch, push buttons

Gigabit RJ45 LAN socket, MicroSD card socket, Micro USB2.0 socket, USB A socket, 4 x jumpers

5V input power supply



20171115 04

  產品編號:TEB0707-02
