TEI0022-DataStorm DAQ｜M-Board FMC Carrier for M-Series Precision Converters

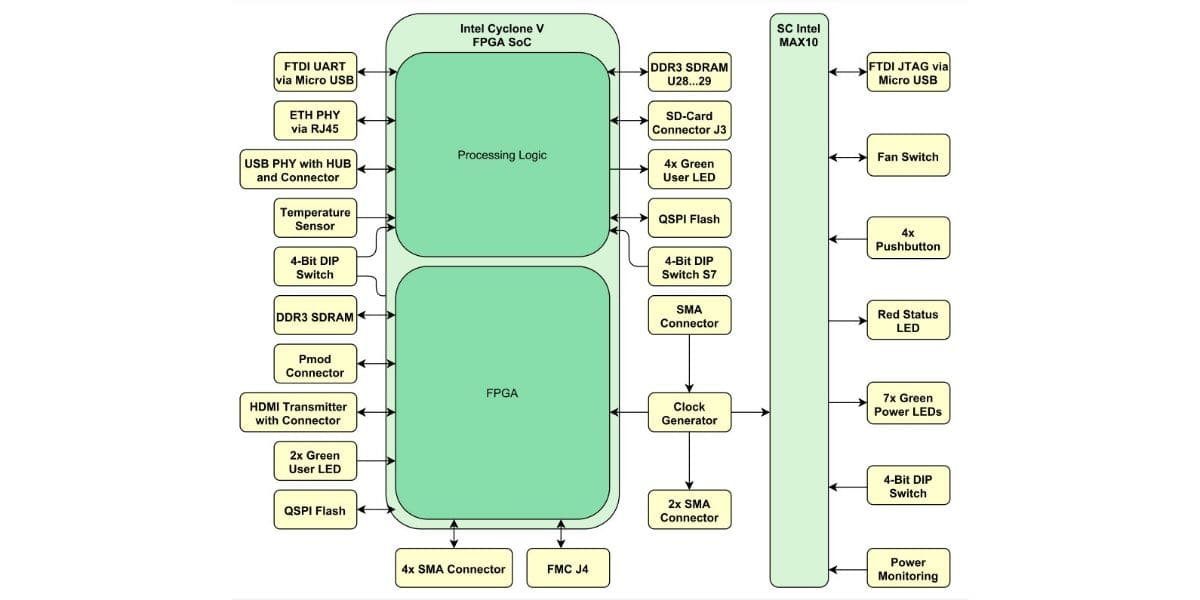

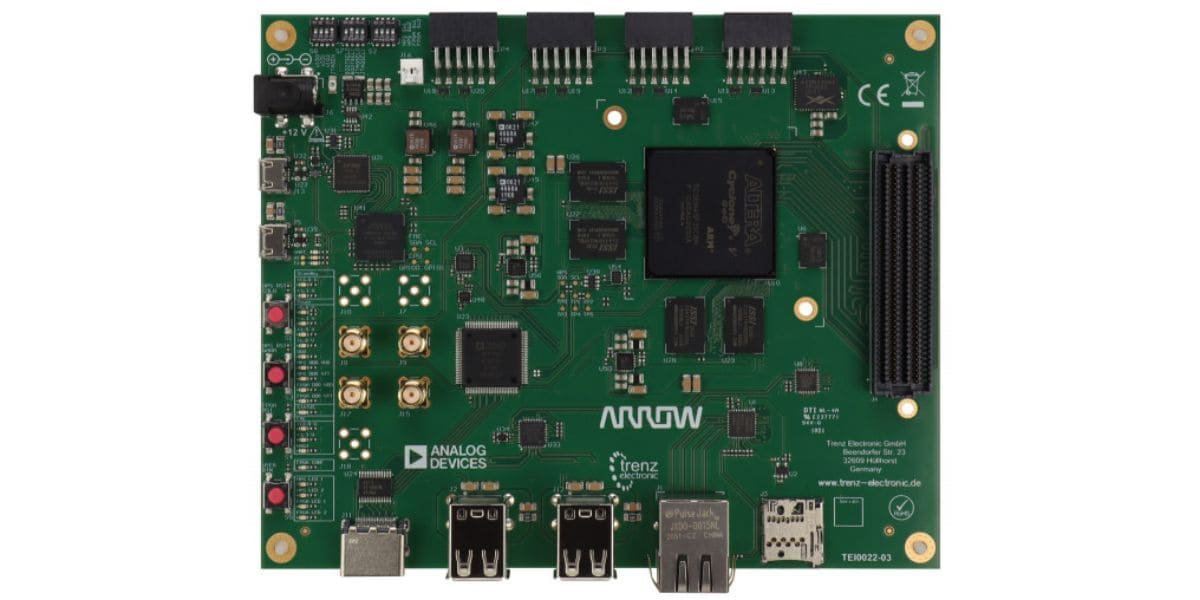

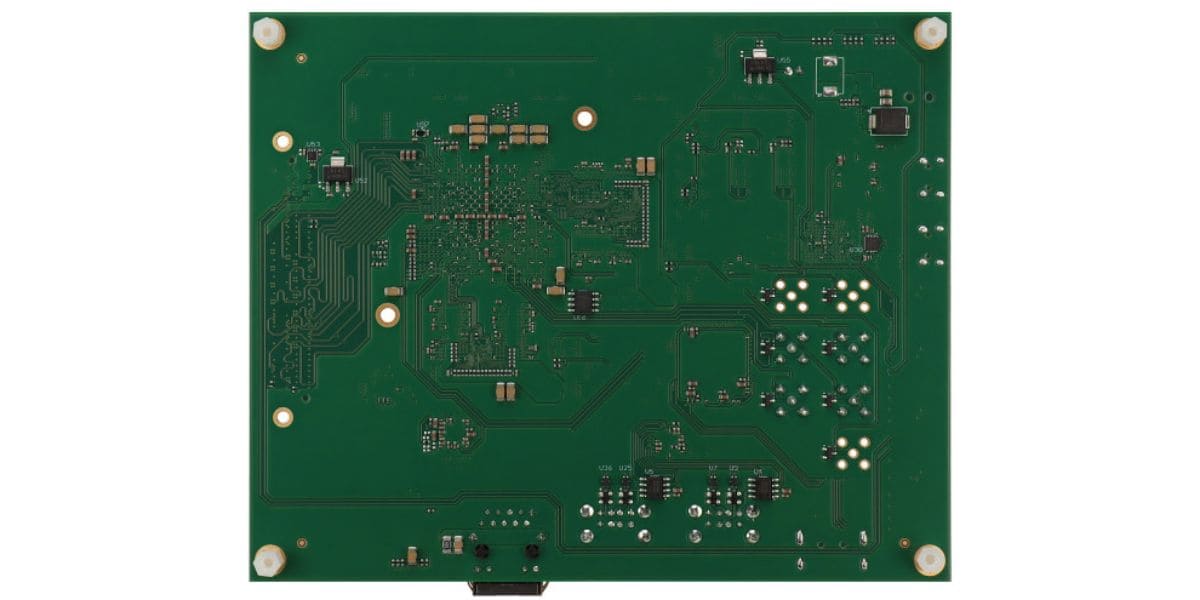

The Trenz Electronic TEI0022 is a SoC board based on Intel Cyclone V FPGA, an Ethernet PHY, one GByte DDR3 SDRAM per HPS and FPGA and one 32 MByte Quad SPI Flash memory for configuration and operation per HPS and FPGA, and powerful switching-mode power supplies for all on-board voltages.

Key Features

• SoC FPGA
  • Intel Cyclone V (5CSEMA5F31C8N)
  • Package: FBGA 896 pins
  • Speed grade: 8
  • FPGA Temperature range: commercial (Tj = 0 °C to 85 °C)
• RAM/Storage
  • 1 GByte DDR3 SDRAM for HPS
  • 1 GByte DDR3 SDRAM for FPGA
  • 32 MByte SPI for HPS
  • 32 MByte SPI for FPGA
• On Board
  • Up to 7 x SMA connector
  • Temperature sensor
  • Intel MAX10 for board management
• Interface
  • LPC FMC connector
  • 4 x Pmod connector
  • JTAG
  • UART via micro USB B connector (for FPGA)
  • UART via micro USB B connector (for HPS)
  • 4 x USB 2.0 host
  • Ethernet via RJ45 connector
  • SD card
  • HDMI
• Power
  • 12V input supply voltage
• Dimension: 13 x 16 cm

Scope of Delivery

• 1 x TEI0022-03 Trenz Electronic SoC module with Intel Cyclone V FPGA
• 1 x 28169 power Supply with four exchangeable adapters and cable, 12V/2.5A
• 2 x bolts
• 4 x screws

規格:

	產品編號：TEI0022-03
