TE0710 Xilinx Artix-7:35T｜Dual fast Ethernet Artix Module with Xilinx Artix-7 100T Speedgrade 2C

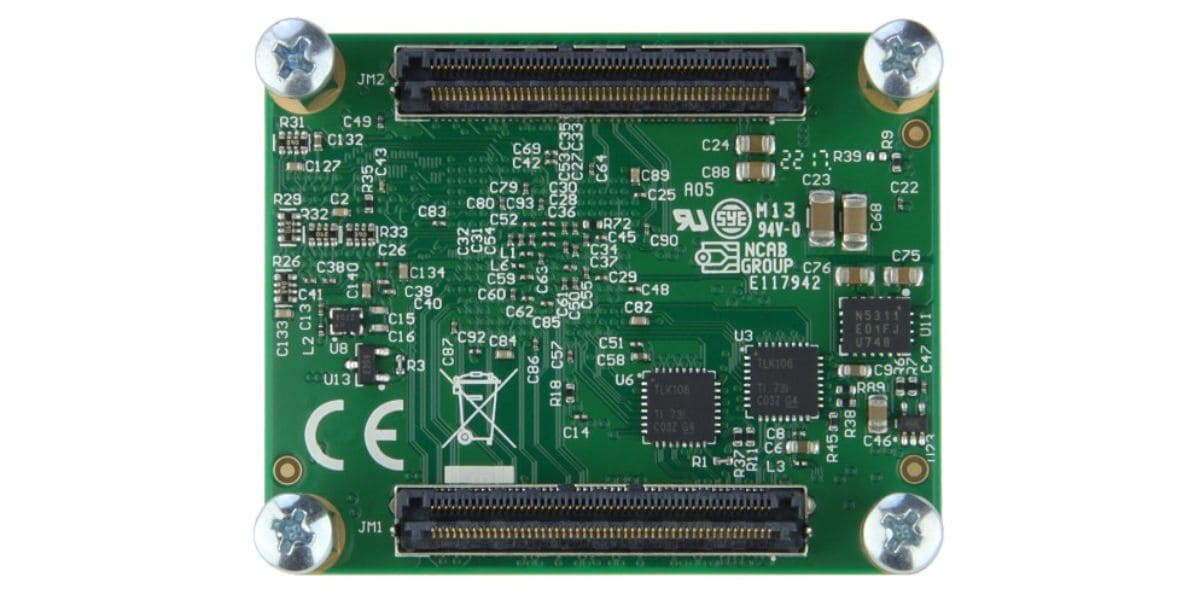

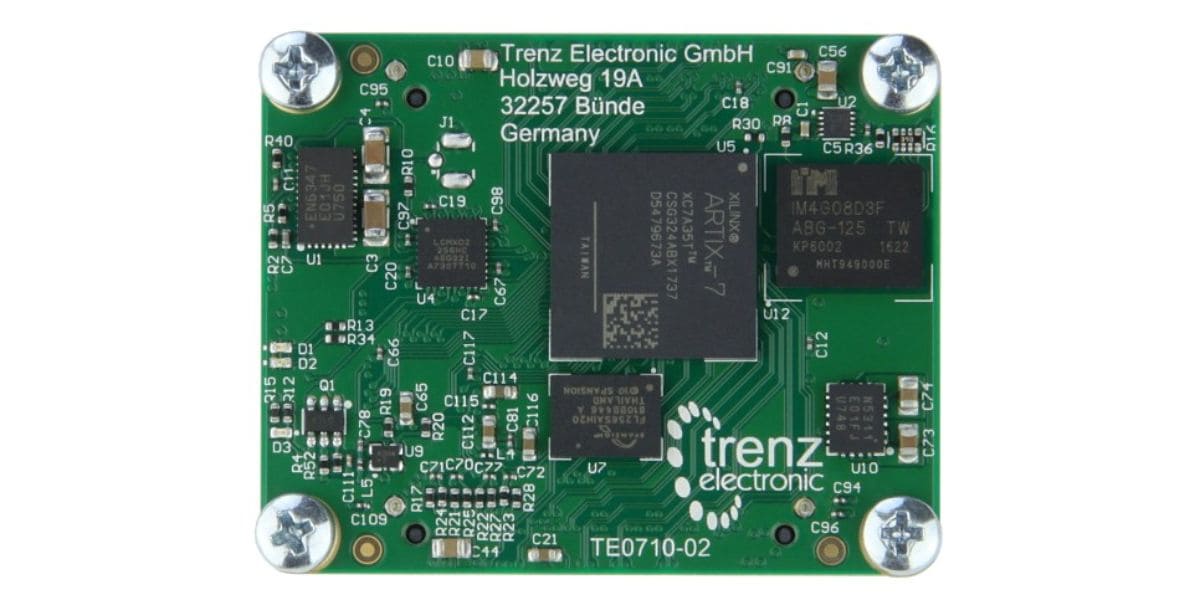

The Trenz Electronic TE0710-02-35-2CF is a FPGA module integrating a Xilinx Artix-7 35T FPGA, two 10/100 Mbit Ethernet PHYs, 512 MByte DDR3 SDRAM with 8-bit width, 32 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

• Key Features

  • Xilinx Artix-7 XC7A35T-2CSG324C
  • Rugged for shock and high vibration
  • 32 MByte (256 Mbit) Quad-SPI Flash memory
  • 100 MHz MEMS oscillator
  • 512 MByte DDR3 Memory
  • Dual 100 Mbit Ethernet Phy
    • MAC Address EEPROM
  • On-board high-efficiency DC-DC converters
    • Core voltage regulator: 4 A

    • 4.0 A x 1.0 V power rail

    • 1.0 A x 1.8 V power rail

    • 1.0 A x 1.5 V power rail

  • Power supply: either 3.3 V or 3.3 V and 5 V
  • Plug-on module with 2 x 100-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • Up to 112 (51 differential pairs + 10 single-ended) single-ended FPGA I/O pins available on B2B strips
  • 3 LEDs (two status LEDs and one user LED)
  • System management and power sequencing
  • eFUSE bit-stream encryption
  • AES bit-stream encryption
  • Evenly spread supply pins for good signal integrity

Scope of Delivery

• 1 x TE0710-02-35-2CF Trenz Electronic 4 x 5 cm FPGA module with Xilinx Artix-7 35T
• 8 x screws
• 4 x bolts

	產品編號： TE0710-02-35-2CF：Xilinx Artix-7 35T Speedgrade 2C TE0710-02-100-2CF：Xilinx Artix-7 100T Speedgrade 2C
