TE0741 Series|Xilinx Kintex-7

TE0741 Series-Xilinx Kintex-7, Flash, 8 High Speed Serial Transceivers, 25 MHz Oscillator(70T/160T/325T/410T )

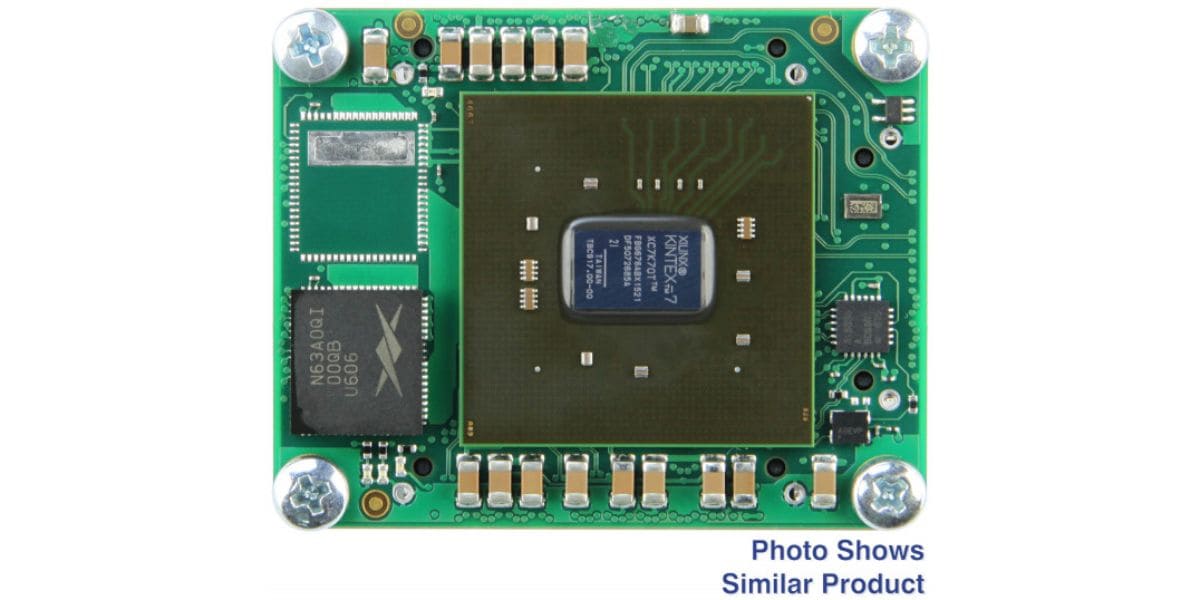

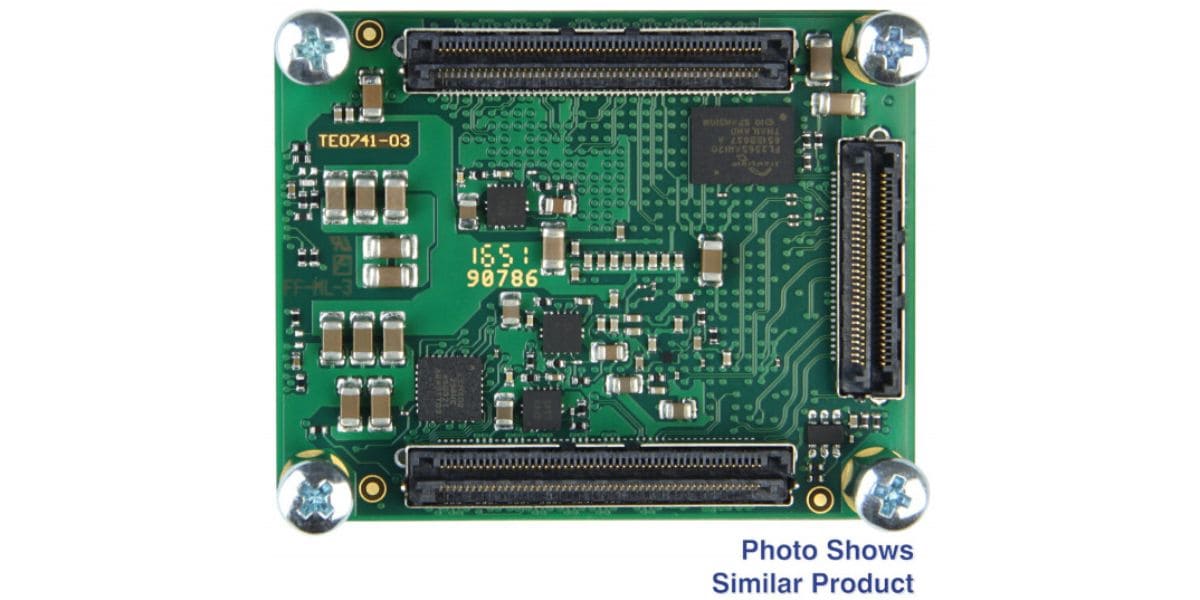

The Trenz Electronic TE0741 Series is a FPGA module integrating a Xilinx Kintex-7T FPGA, 8 MGTs (Multi Gigabit Transceivers) and 32 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/Os is provided via rugged high-speed stacking strips.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

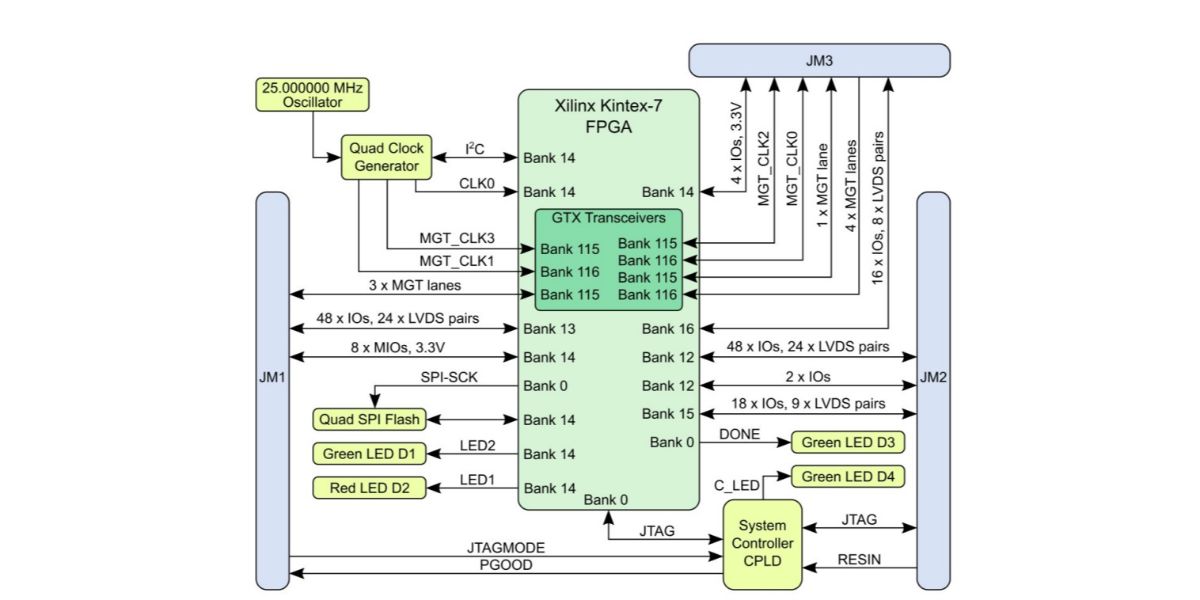

 2022 10 27 111453

Key Features

  • Xilinx Kintex-7(70T/160T/325T/410T )
  • 256 MBit (32 MByte) Quad-SPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirect)
  • 8 MGTs (multi gigabit transceivers)
  • FPGA configuration through:
    • JTAG (B2B connector)
    • SPI Flash memory
  • 25 MHz low jitter oscillator with shutdown control
  • Programmable quad clock generator (Silicon Labs Si5338)
  • On-board high-efficiency DC-DC converters
    • MGT voltage regulators with control enable
    • Core voltage regulators: up to 30 A (variants depend)
    • Supply voltages: either 3.3 V or 3.3 V and 5 V
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • Up to 144 (94 for 70T) single-ended FPGA I/O pins available on B2B strips
  • 2 user LEDs, 1 DONE FPGA pin LED
  • AES bit-stream encryption
  • Evenly spread supply pins for good signal integrity

Scope of Delivery

  • 1 x TE0741-04-A2C-1-A Trenz Electronic 4 x 5 cm FPGA module with Xilinx Kintex-7 70T
  • 8 x screws
  • 4 x bolts
20171115 04

  產品編號:

TE0741-04-A2C-1-A:70T-2CF

TE0741-04-A2I-1-A:70T-2IF

TE0741-04-B2C-1-AF:160T-2C1

TE0741-04-B2I-1-A:160T-2IF

TE0741-04-B2C-1-A:160T-2CF

TE0741-04-D2C-1-A:325T-2CF

TE0741-04-D2I-1-A:325T-2IF

TE0741-04-G2I-1-A:410T-2IF

TE0741-04-G2C-1-A:410T-2CF
