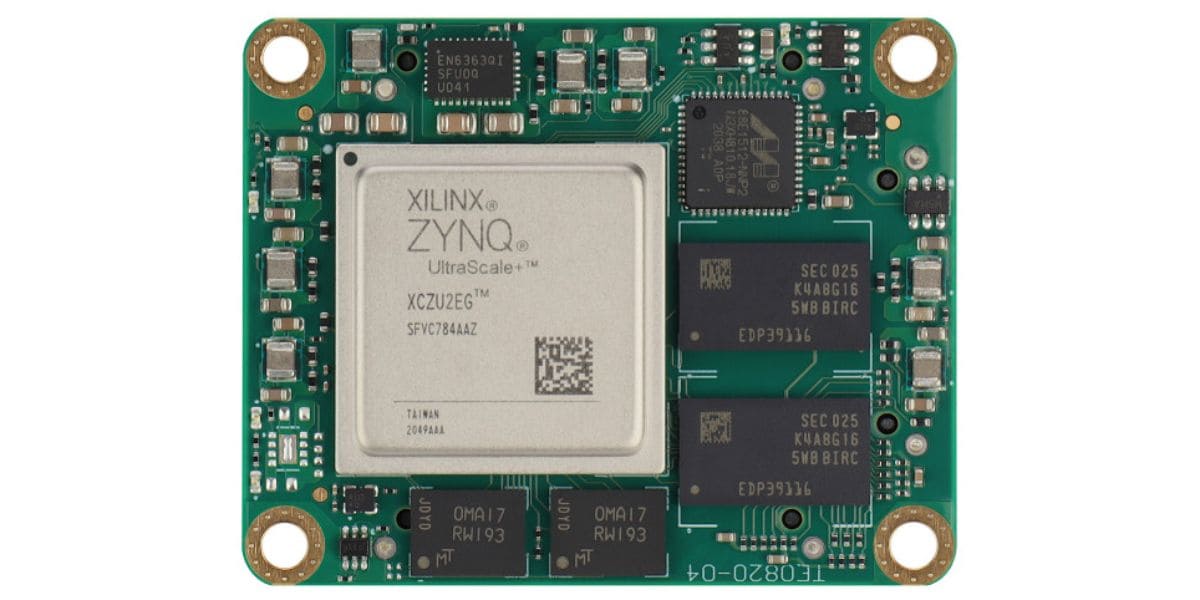

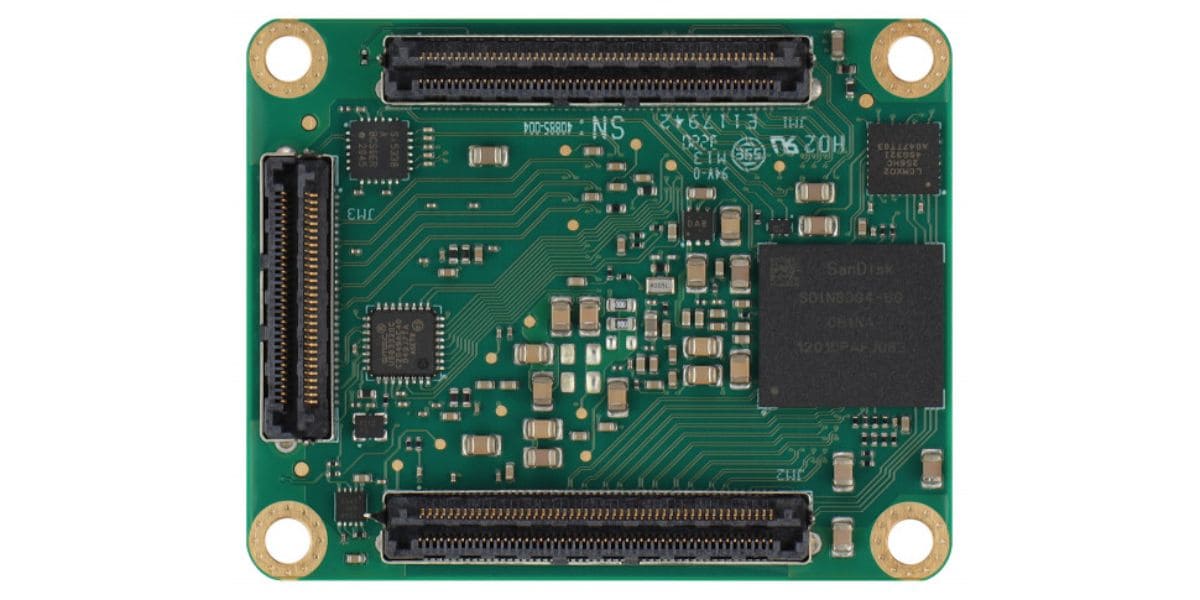

TE0820-MPSoC Module with Xilinx Zynq UltraScale+ ZU2EG-1I, 2 GByte DDR4, 4 x 5 cm, LP(ZU2EG,ZU3EG)

The Trenz Electronic TE0820 Xilinx Zynq UltraScale+ Series is an industrial-grade MPSoC module integrating a Xilinx Zynq UltraScale+ ZU2EG,ZU3EG, 2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

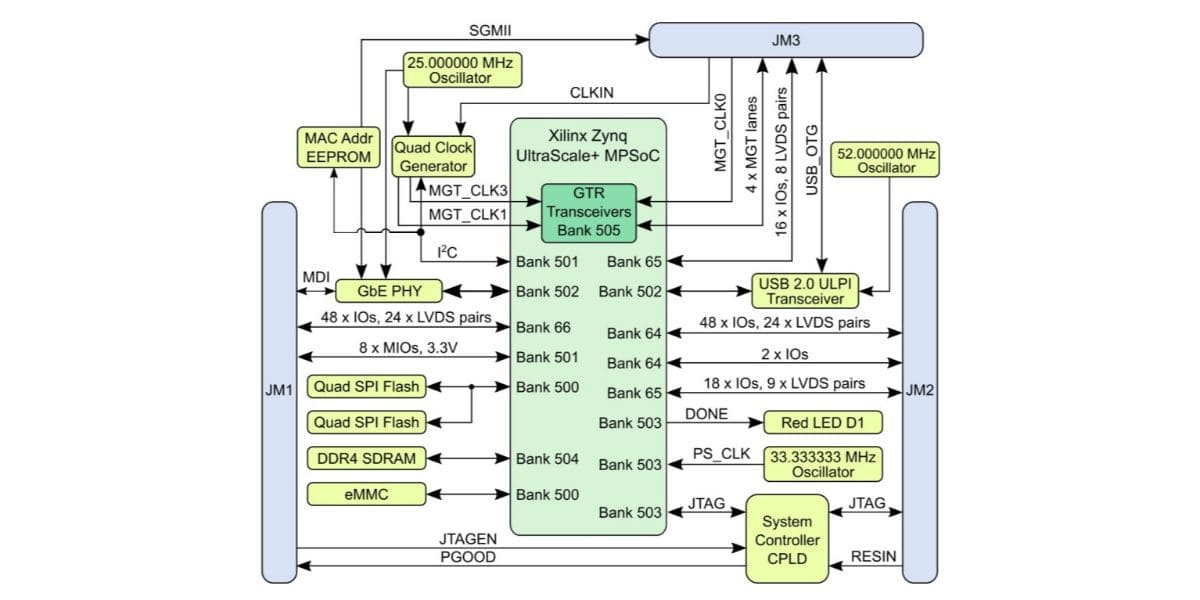

 2022 10 27 115752

Key Features

  • Xilinx Zynq UltraScale+ Series
  • ZU2EG, 784 Pin Packages
    • Application Processor: Quad-Core ARM Cortex-A53 MPCore
    • Real-Time Processor: Dual-core ARM Cortex-R5 MPCore
    • Graphics Processor: Mali-400 MP2
    • Four high-speed serial I/O (HSSIO) interfaces supporting following protocols:
      • PCI Express interface version 2.1 compliant
      • SATA 3.1 specification compliant interface
      • DisplayPort source-only interface with video resolution up to 4k x 2k

      • USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
      • 1 GB/s serial GMII interface
    • 132 x HP PL I/Os (3 banks)
    • 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
    • 4 x serial PS GTR transceivers
  • Rugged for shock and high vibration
  • Graphic Processing Unit (GPU)
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (low profile, 2.5 mm)
  • 2 GByte DDR4 SDRAM, 32-Bit databus-width
  • 128 MByte QSPI boot Flash in dual parallel mode
  • 8 GByte e.MMC Memory (up to 64 GByte)
  • Programmable quad PLL clock generator PLL for PS GTR clocks (optional external reference)
  • Gigabit Ethernet transceiver PHY
  • MAC address serial EEPROM with EUI-48 node identity
  • Hi-speed USB2 ULPI transceiver with full OTG support
  • All power supplies on board
  • Evenly spread supply pins for good signal integrity
  • 4 x 5 cm form factor

Scope of Delivery

  • 1 x TE0820-05-2BI21ML Trenz Electronic MPSoC module with Xilinx Zynq UltraScale+ ZU2EG, low profile connectors (2.5 mm)
20171115 04

  產品編號:

TE0820-05-2BI21ML:Xilinx Zynq UltraScale+ ZU2EG-1I, 2 GByte DDR4, 4 x 5 cm, LP

TE0820-05-2BE21ML:Xilinx Zynq UltraScale+ ZU2EG-1E, 2 GByte DDR4, 4 x 5 cm, LP

TE0820-05-3BE21ML:Xilinx Zynq UltraScale+ ZU3EG-1E, 2 GByte DDR4, 4 x 5 cm, LP
