TEI0050|Intel Cyclone V

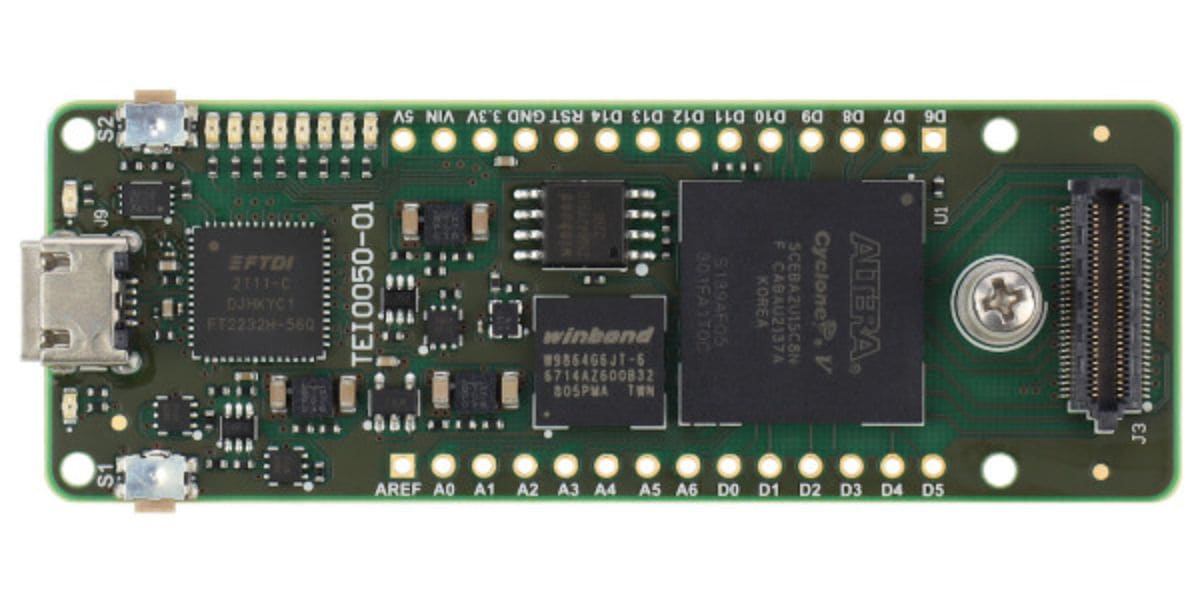

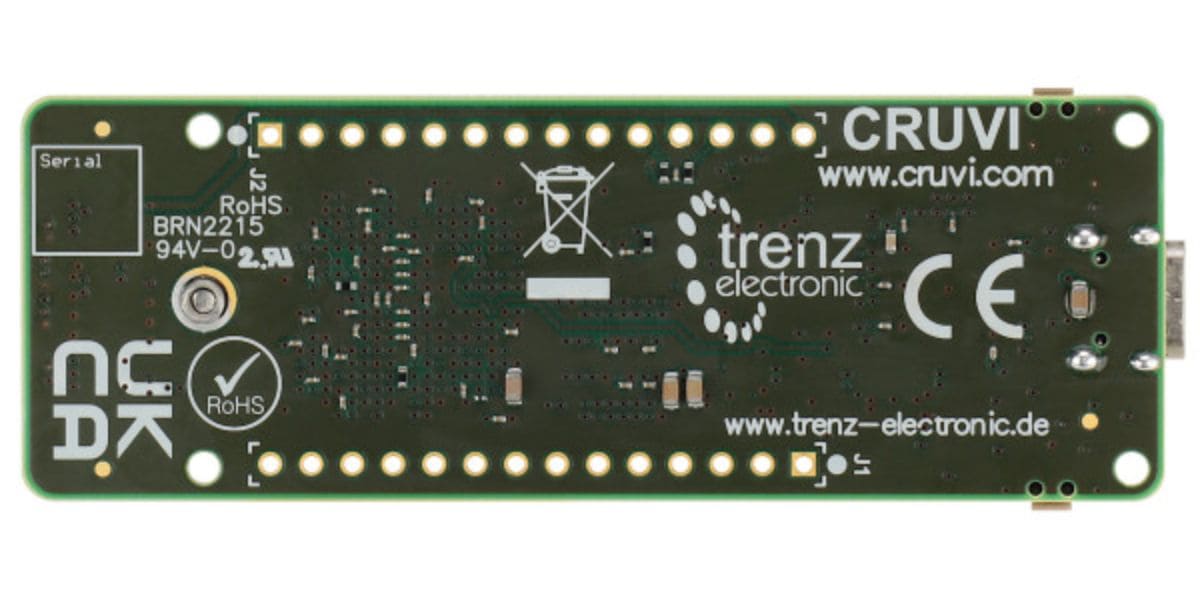

TEI0050-CYC5000 with Cyclone V FPGA, 25kLE, 8 MByte SDRAM

The Trenz Electronic TEI0050-01-AAH13A is a small powerful FPGA module integrated an Intel Cyclone V FPGA, 8 MByte SDRAM and 8 MByte Flash. The CYC5000 is based on the Cyclone V FPGA from Intel and is a complete production board, designed for evaluation and final products.

 2022 11 21 143344

Key Features

  • Intel Cyclone V E FPGA:
    • 5CEBA2U15C8N
    • 25 kLE
    • Ultra FineLine BGA 325 Pin Package
  • 8 MByte SDRAM
  • 8 MByte Flash
  • CRUVI HS Connector, 2 x 14 Pin Header
  • USB-to-JTAG
  • GPIO-FTDI
  • 8 x user LEDs
  • 1 x user push button
  • 5.0 V single power supply with on-board voltage regulators
  • size: 2.5 x 70.66 mm

Scope of Delivery

  • 1 x TEI0050-01-AAH13A Trenz Electronic FPGA module with Intel Cyclone V E FPGA
20171115 04

產品編號:TEI0050-01-AAH13A
