CR00103 |Lattice Certus-NX

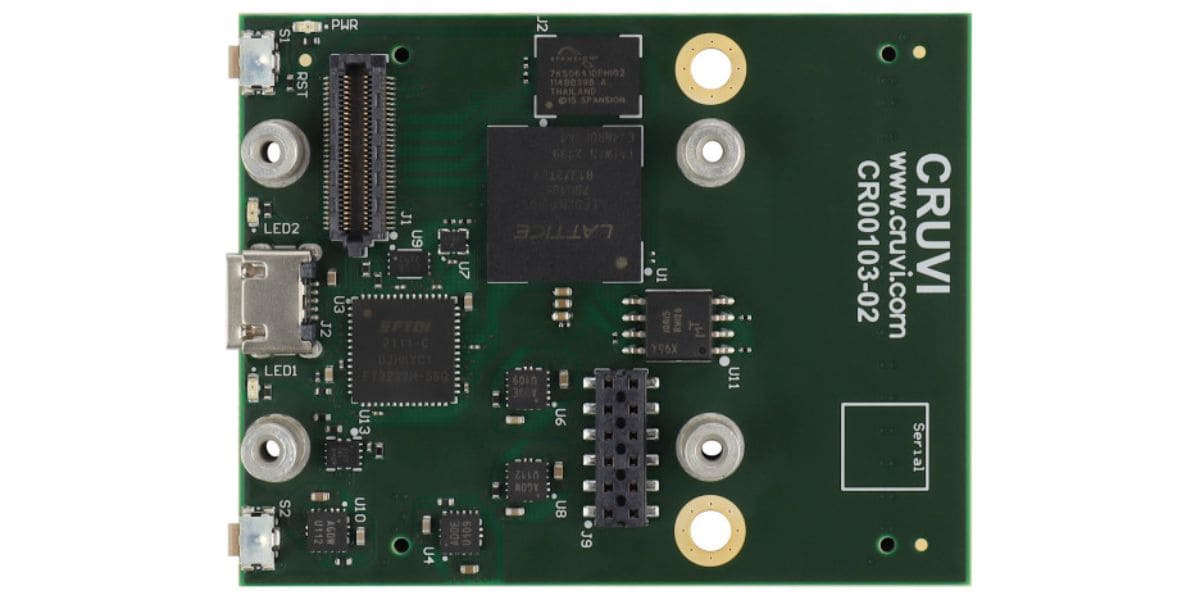

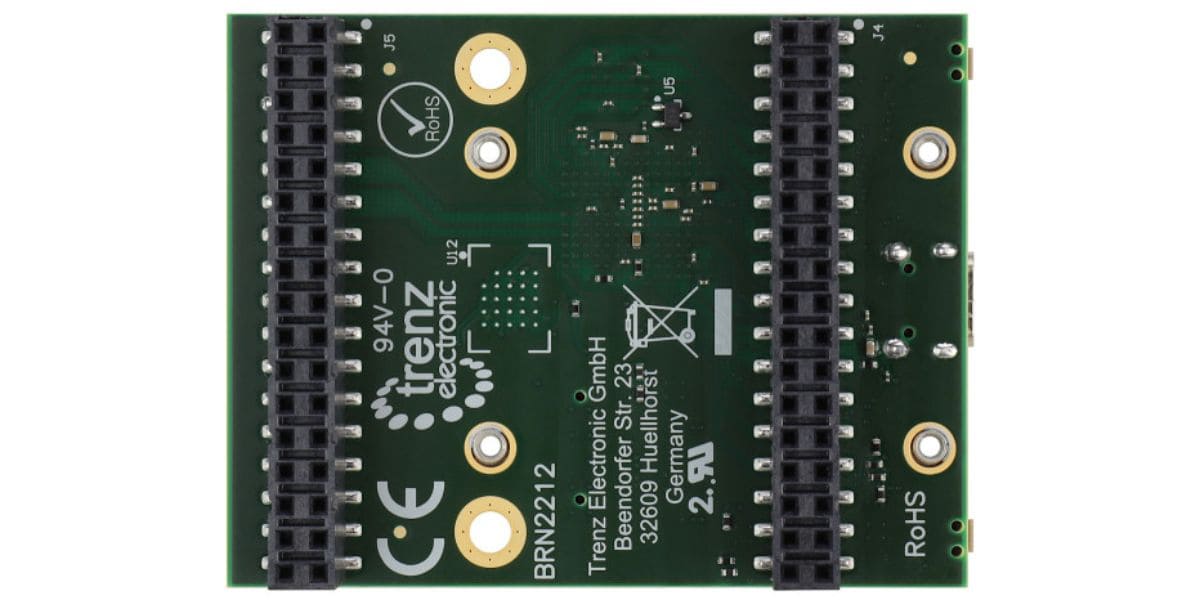

CR00103-CRUVI Certus-NX Base Board with Lattice Certus-NX FPGA, 8 MB RAM, 4.5 x 5.7 cm

This board based on the Nexus FPGA Certus-NX from Lattice and designed according to the new CRUVI standard.

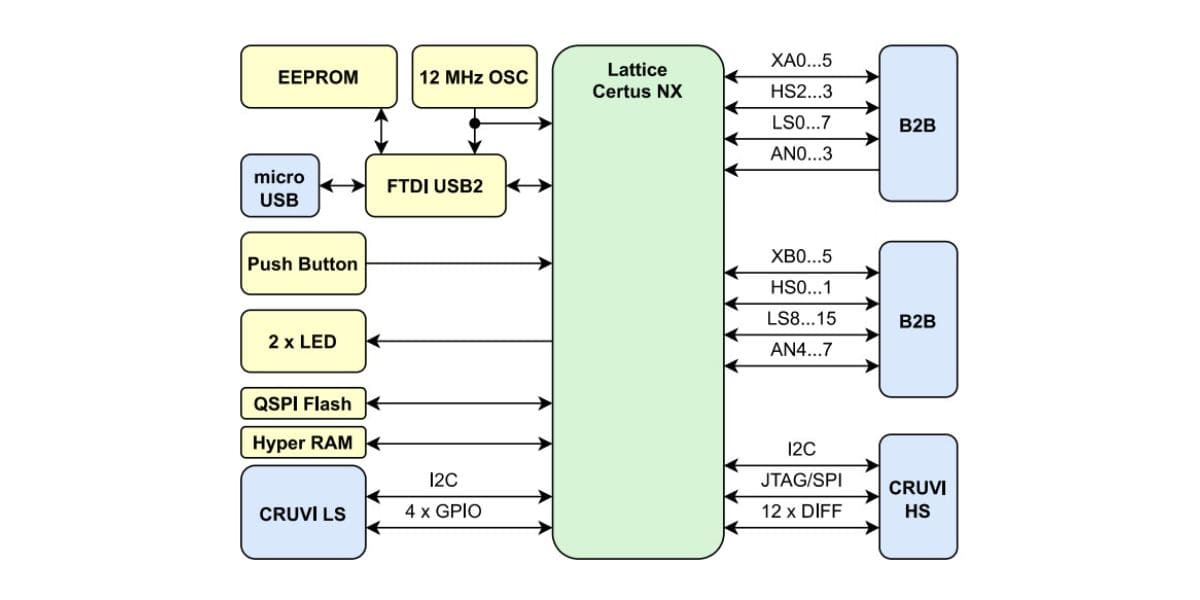

 2022 11 21 151129

Key Features

  • On Board
    • Certus NX LFD2NX-40-7BG196I FPGA
    • FTDI (JTAG and UART over micro USB connector)
    • 3 x LEDs (1 x power indicator, 2 x user)
    • 2 x user push buttons
  • RAM/Storage
    • EEPROM
    • 8 MB HyperRAM
    • 16 MB QSPI Flash Memory
  • Interface
    • Micro USB 2.0
    •  CRUVI
      • 2 x 34 pin connector
      • 1 x high speed 60 pin connector
      • 1 x low speed 12 pin connector
  • Power
    • micro USB connector or 2 x 34 pin connector
  •  Dimension
    • 57,5 mm x 44,85 mm

Scope of Delivery

  • 1 x CR00103-02-A Trenz Electronic CRUVI Certus-NX Base Board with Lattice Certus-NX FPGA
  • 4 x screws
20171115 04

產品編號:CR00103-02-A
